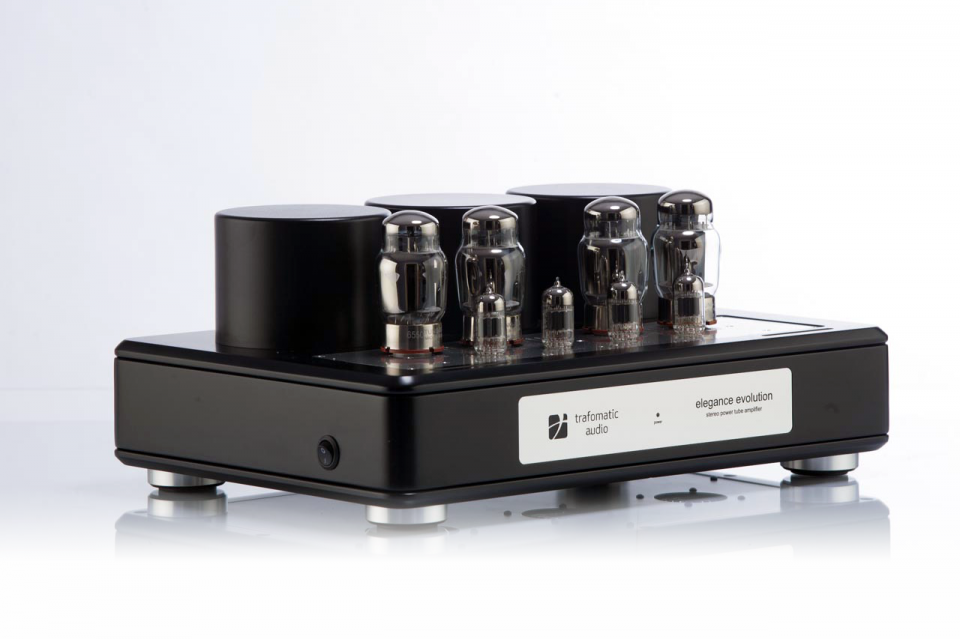

Trafomatic Evolution Elegance power

Solicită un preț mai bun AICI!
  • 19,990 RON

  • Fără TVA: 16,798 RON

Personalizare


Evolution Elegance is the most powerful amplifier in the Evolution series. It is constructed as push-pull using well known 6550 (KT88) output tubes. Output power is 50W per channel, which is sufficient for most speakers, even those with lower than average sensitivity.

This is a power amplifier, requiring preamplifier and opening endless possibilities for system configuration. Based on previous work on negative feedback, -6dB reaction has been tuned to provide sound equivalent to a good Single Ended application. Cathode feedback was used as the most musical one. Bass is well controlled, dynamic response is excellent and this amplifier belongs to the very top of its class.

Same as all previous models, well designed power supply utilizes 300VA toroidal transformer, C-L-C filter and

Nippon Chemi-Con electrolytics. Output transformers are based on a Double-C core configuration and Solen fast capacitors are used throughout. Adding well thought-out concept to the mix results in a recognizable high quality sound of our amplifiers.

Modern styling of Trafomatic Audio amplifiers has been extended to this model as well, which makes a perfect sonic and visual fit with Evolution Line One preamplifier. An excellent starting point for full immersion in good sound. See and hear for yourself.

Output power: 2x50W

Class of operation: Push-Pull (class AB)

Tubes complement: 4x 6550 (KT88) , 4x ECC82

Inputs: 1xRCA , 1xXLR

Outputs: 4 and 8 ohms

Input sensitivity: 2Vrms

THD %: 0.03% – 1W/1KHz, 2% – 50W/1KHz

Frequency bandwidth: 10Hz(-1dB)-85KHz( -3dB)

S/N Ratio: 85dB

Input inpedance: 100K

Power consumption: 250VA

Input voltage: 230V/50Hz – 115V/60Hz switchable

Size: 450x320x195mm

Weight: 22kg
